高回弹聚氨酯基材-EFOF-PU
航科固邦 EFOF-PU耐高温聚氨酯导电包覆产品，由导电织物包裹高回弹的泡棉并背导电胶，具备广泛的优良电磁干扰屏蔽性能，为电磁干扰提供卓越的解决方案。还可以提供非导电或导电压敏胶带，并可在胶带上附上一层离型膜。它们可以制作成矩形、D 型、C 型、P 型、T 型、刀型、钟形等横截面形状，也可以针对不同的应用通过模切、冲孔、开槽等方式做进一步定制，不含卤素，符合RoHS/REACH要求。

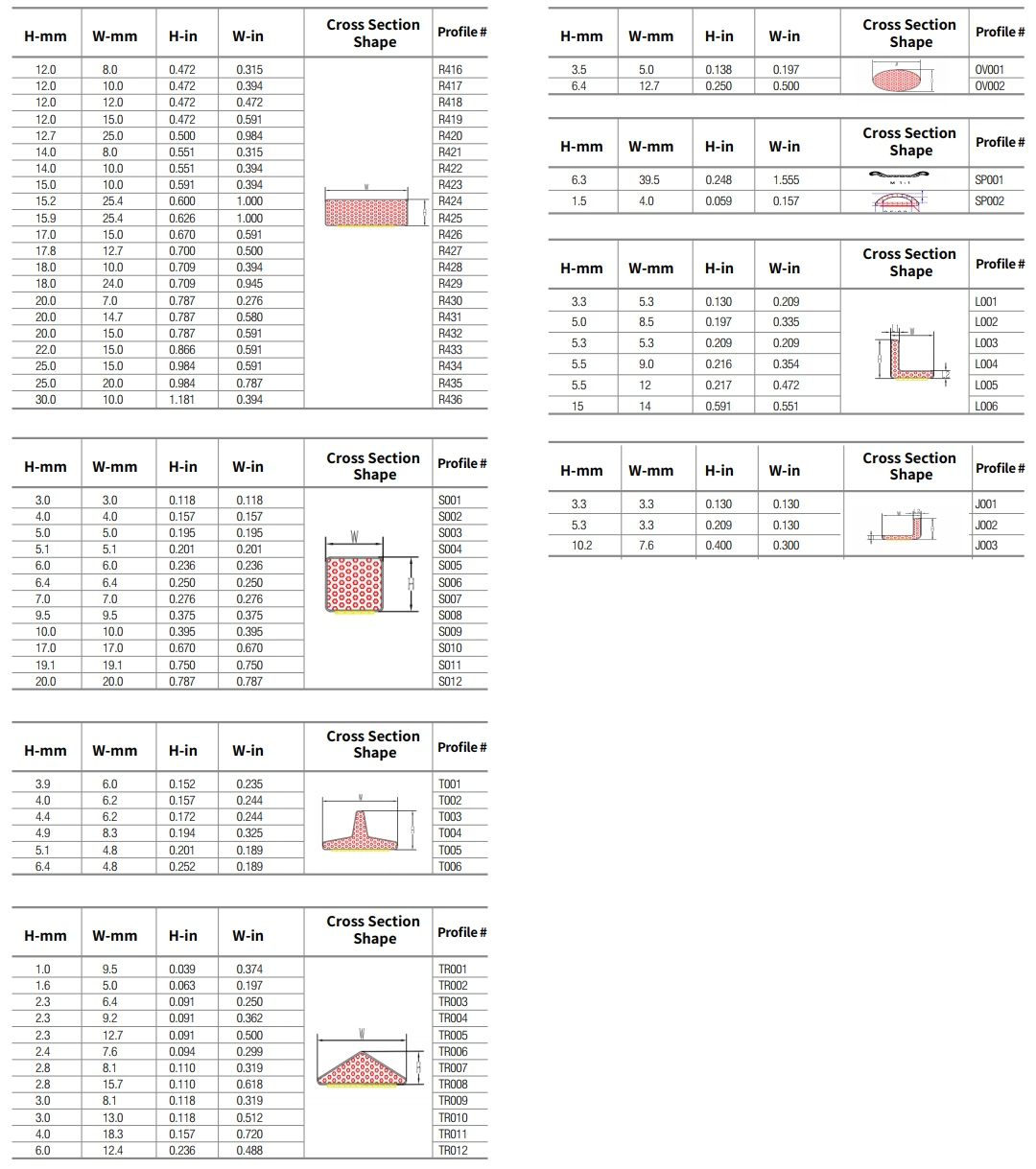

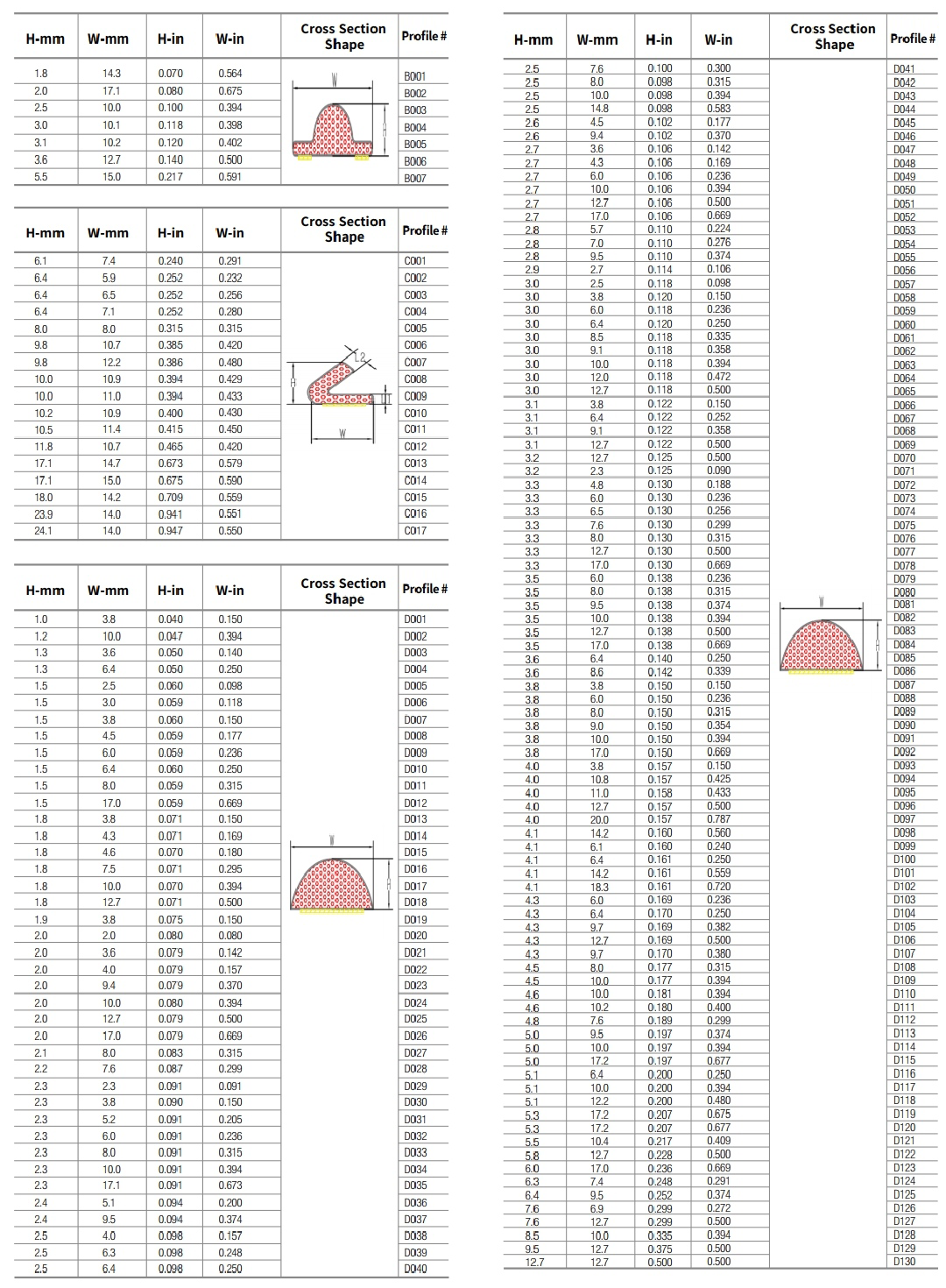

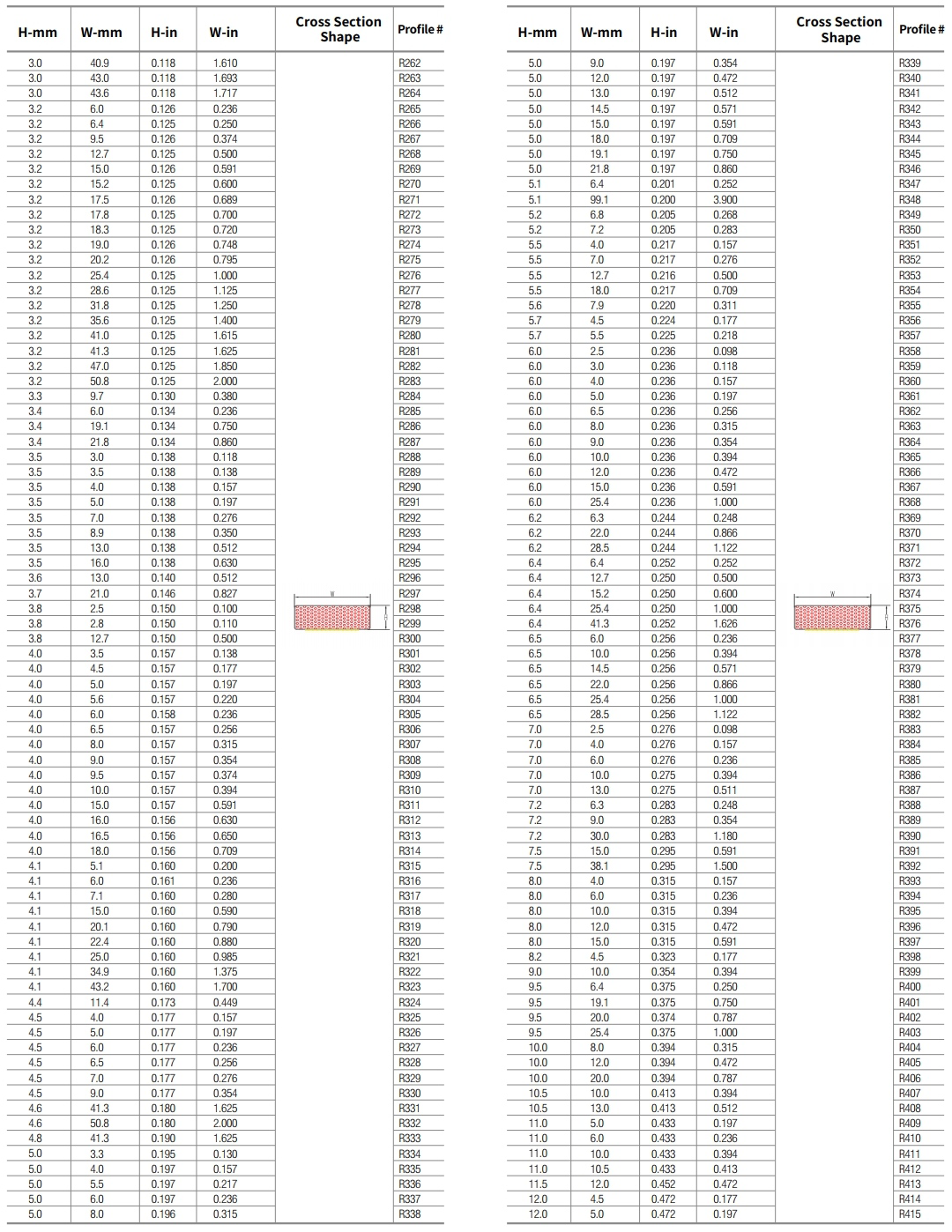

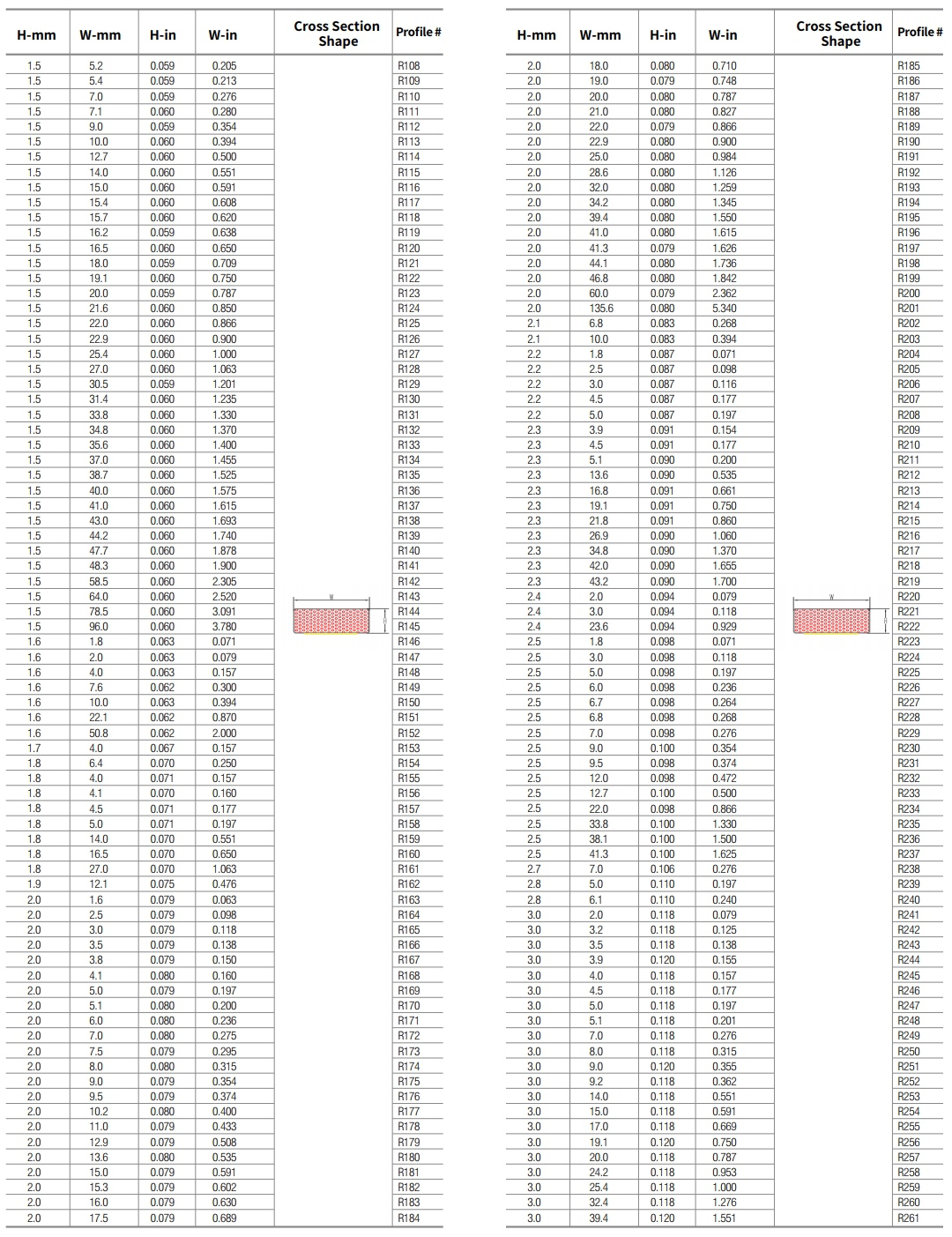

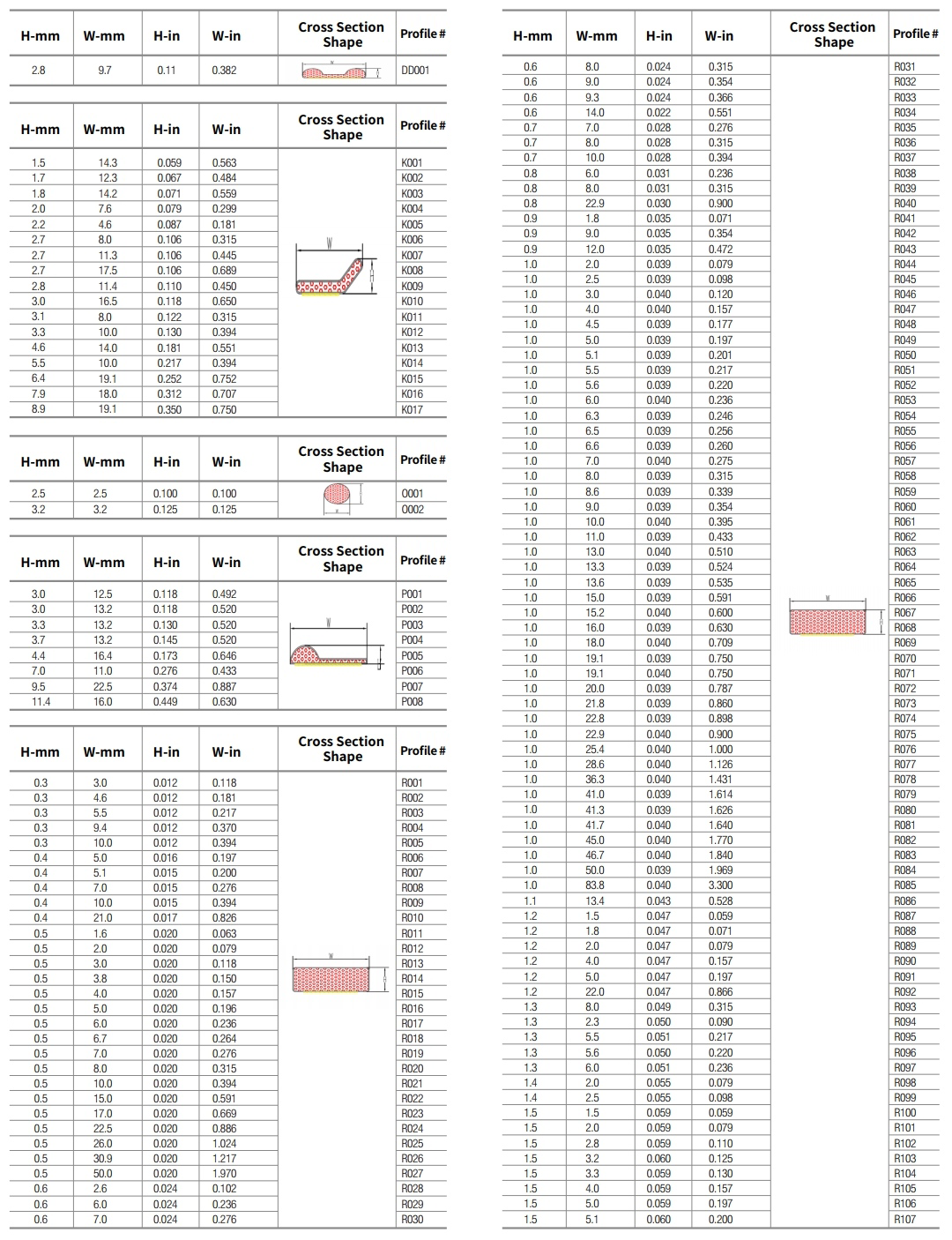

常用形状
选型指南
芯材
产品概述
产品参数
规格性能

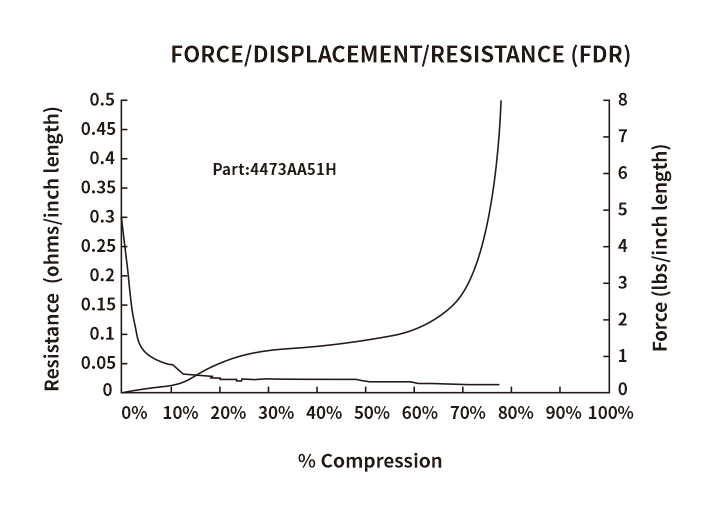

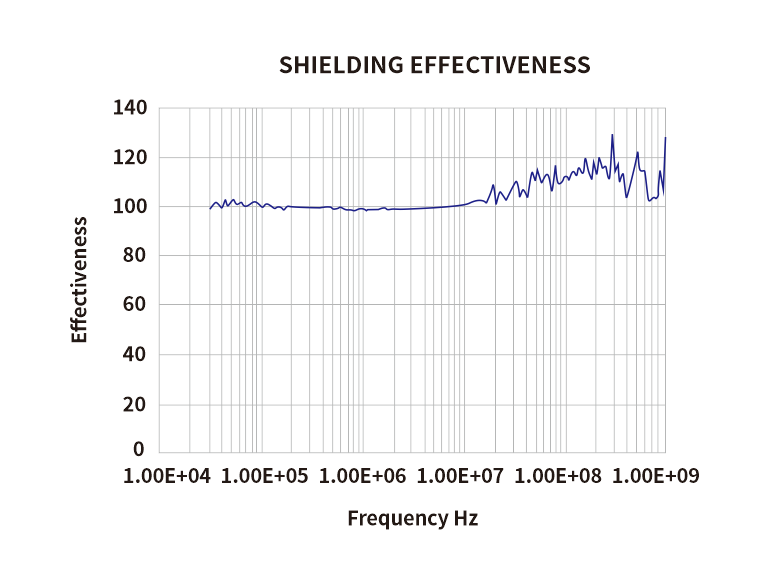

性能曲线
| E | X | XXXX | X | X | X | XXXX | X |
|---|---|---|---|---|---|---|---|
|
Product Category
|
Profifile Shape
|
Profifile Size
|
Core Type
|
Fabric Type
|
Attachment
|
Length
|
Flame Rating
|
|
E = EMI Shielding
|
B - Bell Shape
|
F - 50KG-HB-Black PU Core
|
A-Grey Ni/Cu
Polyester Taffeta
|
CD - Double Conductive PSA Stripe
|
Length in inches, Max 78.74 inches (2 Meters)
|
F - 94V0
|
|
|
C - C-Fold
|
F1 - 130KG-HB-Black PU Core
|
B-Grey Ni/Cu
Polyester Ripstop
|
PD - Double Non-Conductive PSA Strip
|
Ex: 3937=39.37"=1000mm
|
F1 - 94HB
|
||
|
D - D-Shape
|
F2 - 130KG-HB-High Temperature Gray PU Core
|
C-Grey Ni/Cu
Polyester Mesh
|
CN - Conductive PSA on the 2/3 of the Narrow Side
|
4800=48"=1219mm
|
N - No Rating
|
||
|
DD - Double
D-Shape
|
F3 - 90KG-HB-High Temperature Gray PU Core
|
D-Ni/Cu
Polyester Nonwoven
|
CW - Conductive PSA on the 2/3 of the Wide Side
|
||||
|
H - 22KG-94V0-Silicone Sponge (HT800 Gray)
|
E-Black Ni/Cu
Polyester Taffeta
|
PN - Non-Conductive PSA on the 2/3 of the Narrow Side
|
|||||
|
K - Knife Shape
|
P - 25KG-HB-Poron Black Core
|
F-Black Ni/Cu
Polyester Ripstop
|
PW - Non-Conductive PSA on the 2/3 of the Wide Side
|
||||
|
S - 25KG-94V0- Silicone Sponge (Red)
|
H-Graphite Film
|
LC - Conductive PSA on Customized Area
|
|||||
|
O - Round Shape
|
U - 20KG-HB-CR Black Core
|
J - Nickel Plated PI
|
LP - Non-Conductive PSA on Customized Area
|
||||
|
OV - Oval Shape
|
W - 30KG-HB-White EPDM Sponge
|
X - Tin Plated PI
|
NN - No PSA
|
||||
|
P - P-Shape
|
W1 - 25KG-HB-Black EPDM Sponge
|
K - Anti-Oxidant Al Foil
|
|||||
|
R - Retangular
|
|||||||
|
S - Square Shape
|
|||||||
|
TR - Triangular Shape
|
|||||||
|
T - T-Shape
|
|||||||
|
M - M-shape
|
|||||||
|
SP - Customized Shape
|
|||||||
|
Example
|
|||||||
| E | D | 510 | P | A | CW | 3937 | F |
|
EMI Product
|
D-Shape
|
5*10mm
|
25KG-HB-Poron Black Core
|
Grey Ni/Cu Polyester Taffeta
|
Conductive PSA on the 2/3 of the Wide Side
|
1 Meter in Length
|
94V0
|
|
Item
|
SF01
|
SF02 | SF03 | SF04 | SF05 | SF06 | SF07 | SF08 |
Test Method
|
|---|---|---|---|---|---|---|---|---|---|
|
Ni/Cu Polyester Taffeta - A/E
|
Ni/Cu Polyester
Ripstop - B/F
|
Ni/Cu Polyester Mesh - C
|
Ni/Cu Polyester Nonwoven - D
|
Graphite Film - H
|
Nickel Plated PI - J
|
Tin Plated PI - X
|
Anti-Oxidant Al Foil - K
|
||
|
Color
|
Grey/Black
|
Grey
|
Grey
|
Golden
|
Silver
|
Silver
|
Visual
|
||
|
Substrate
|
Fabric
|
Fabric Mesh
|
Non Woven
|
Graphite Film
|
PI Film
|
PI Film
|
NA
|
||
|
Surface Resistivity (Ω)
|
<0.07Ω
|
<0.07Ω
|
<0.07Ω
|
NA
|
<0.02Ω
|
<0.05Ω
|
(ASTM F390
|
||
|
Shielding Effectiveness (dB)
|
70
|
40 | 80 | NA | 90 | 80 |
MIL-G-83528C
|
||
|
Flammability
|
HB-VO
|
HB | HB | V0 | V0 | V0 |
UL-94
|
||
|
Operating Temperature (°)
|
-40 to 120
|
-40 to 120 | -40 to 120 | -40 to 200 | -40 to 250 | -40 to 150 |
Thermometer
|
||
|
Tensile Strength (Ib/in)
|
70~80
|
40~50 | 80~100 | 50~60 | 50~60 | 80~100 |
ASTM 5035
|
||
|
Air Flow (ft3 /min/ft2)
|
60
|
NA | 500 | 500 | 650 | 650 | |||
|
Benefifits
|
Flame Retardant, High Shear Resistant
|
Low Cost
|
Flame Retardant, High Shear Resistant
|
Heat Dissipation
|
High Temperature, Solderable
|
High Temperature, Strong Structure
|
|||
|
Suitable Application
|
I/O or Complex Shape Profifiles
|
I/O
|
I/O or Complex S hape Profifiles
|
Special Application
|
SMD
|
Special Application
|
|||
|
产品特性 优秀的导电性，具有很高的屏蔽效能 高抗氧化性防腐性 耐磨性能好，耐摩擦可靠性可达一百万次 柔软，不适合提供较大压力的场合 性价比高，是非常理想的屏蔽材料 安装方式简单多样，适合粘贴、卡槽 产品符合ROHS、Reach、UL94-V0等标准 |
产品应用 通用设备机箱、家用电器 静电释放应用。 工业设备、笔记本电脑、平板电脑 |
背胶选型参考
| 产品名称 | 金属镀层 | 表面电阻率 （ASTMF390） |
抗磨损 （ASTM D3886) |
颜色 | 耐温性 | 优势 | 应用 |
|---|---|---|---|---|---|---|---|
| 塔夫绸导电布 | Ni/Cu | ＜0.07Ω | 750,000次 | 灰/黑 | ﹣40~70℃ | 成本优，阻燃，表面可做抗氧化处理 | EMI/RFI:外壳遮蔽物，EMI衬垫，导电胶带，接地 |
| 强化纤维铝箔 | Al | ＜0.05Ω | 100,000次 | 银色 | ﹣20~120℃ | 柔韧性，稳定性，成本优，阻燃 | EMI/RFI:外壳遮蔽物，EMI衬垫，导电胶带，接地 |
| 抗撕裂织物 | Ni/Cu | ＜0.07Ω | 100,000次 | 灰/黑 | ﹣40~70℃ | 抗撕拉，透气性，阻燃 | EMI/RFI:外壳遮蔽物，EMI衬垫，导电胶带，反射器 |
| 无纺布 | Ni/Cu | ＜0.07Ω | 750,000次 | 灰/黑 | ﹣40~70℃ | 轻巧，透气性，耐腐蚀 | EMI/RFI:外壳遮蔽物，EMI衬垫，导电胶带 |
| 特制铜箔 | Ni/Cu | ＜0.05Ω | 100,000次 | 银色 | ﹣40~180℃ | 支撑性，耐高温，阻燃 | EMI/RFI:外壳遮蔽物，EMI衬垫，导电胶带 |
| 电镀PI膜 | Sn | ＜0.02Ω | - | 银色 | ﹣40~250℃ | 可焊接，超薄，耐高温 | SMD，特殊应用环境 |
| 产品名称 | 厚度mm | 粘性强度 | 耐温性 | 优点 | 备注 | ||
| 压敏胶 |
0.03mm/0.05mm |
1500g-2000g | ﹣10~80℃ | 高剥离力强度 | 可提供其他胶带类型，请跟工程部联系 | ||
| 导电胶 |
0.05mm/0.07mm/0.1mm |
800g-1200g | -20~85℃ | 优良导电性，Z轴导通 | |||
| 定制胶带 |
0.25mm/0.05mm |
1000g-1800g | -40~180℃ | 耐高温 | |||
| 特性 | 性能参数 | 测量方法 |
|---|---|---|
| 产品组成 | 无卤PU泡棉、丙烯酸导电胶、导电布 | - |
| 180.剥离强度 gf/25mm | ≥800 | ASTM D3330 |
| 接触电阻 Ω | ≤0.1 | MIL-STD-202 |
| 表面电阻 Ω/sq | ≤0.05 | ASTM F390 |
| 屏蔽效能 dB | ≥60 | MIL-DTL-83528 |
| 建议压缩率 | 20~40% | - |
| 适用温度（℃） | -40~120（可选耐高温芯子） | - |
