Aeroflex ATG960


Aeroflex  ATG960 is special designed for use in high performance devices requiring maximum thermal performance, excellent microwave absorption, low compression force and component reliability. In addition to providing application flexibility and variable gap adaptation, Aeroflex ATG960 will exert minimum stress on your component while maintaining interface contact to maximize thermal transfer. It requires no cure cycle and it’s cross-linked gel structure provides superior long term properties stability and reliable performance over conventional greases.

Product Description Typical Property Data

FEATURES & BENEFITS

Both microwave absorptive & thermal conductive
Thermal conductivity 6.0 W/m·k
Especially suitable for 25GHz optical module application
Ultra low thermal resistance
Low out-gassing
Ultra low compression force
Long-term reliability
RoHS compliant



TYPICAL APPLICATIONS

Optical Module
Automotive Electronic Control Units (ECU's)
Semiconductors
Microprocessors / Graphics Processors
Flat Panel Displays & Consumer Electronics



STANDARD PACKAGE

30cc, 55cc, 300cc Syringe.
1kg, 10kg pail.

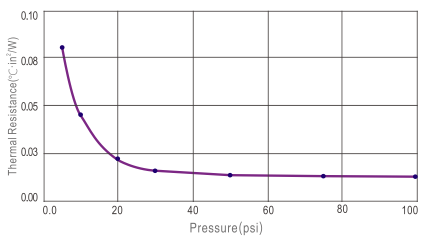

PERFORMCE CURVE

FC@PROPERTIES FC@UNIT FC@TEST METHOD ATG960
Appearance - Visual Grey
Flow Rate g/min Aerobon 25
Thermal Conductivity W/m·K Hot Disk 6.0
ASTM D5470 6.0
Thermal Resistance
(@20psi)
°C·in²/W ASTM D5470 0.032
°C·cm²/W 0.206
Min. Used Thickness mm Aerobon 0.08
Flame Rating - U.L. 94V-0
Volume Resistivity Ω·cm ASTM D257 ≥1.0X109
Dielectric Strength (@1MM) kV ASTM D149 >4.5
Density g/cm³ ASTM D792 3.9
TML (CVCM) % ASTM E595 ≤0.12(0.01)
Low Volatility Content (D4-D20) ppm Gas Chromatograph <20
CTE ( Coefficient Thermal Expansion ) ppm/°C ASTM E831 135
Service Temp °C Aerobon -60~+200
RoHS Compliant - Aerobon YES
