Aeroflex Grease 5000

Aeroflex  Grease 5000 is silicone-based thermal grease designed to solve overheating and reliability problems. It can thoroughly wet out contact surfaces to create a low thermal resistance, and can be used in pneumatic dispensing and screen printing systems. It is environmentally safe and reliable.

Product Description Typical Property Data

FEATURES & BENEFITS

  • Environmentally safe
    Thoroughly wets out contact surfaces to create low    thermal resistance
  •

TYPICAL APPLICATIONS

  • CPUs (Notebooks, Desktops, Servers)
    Custom ASICS ChipsMicroprocessors / Graphics Processors
    North-bridge Chipsets
    Integrated Gate Bipolar Transistors (IGBTs)

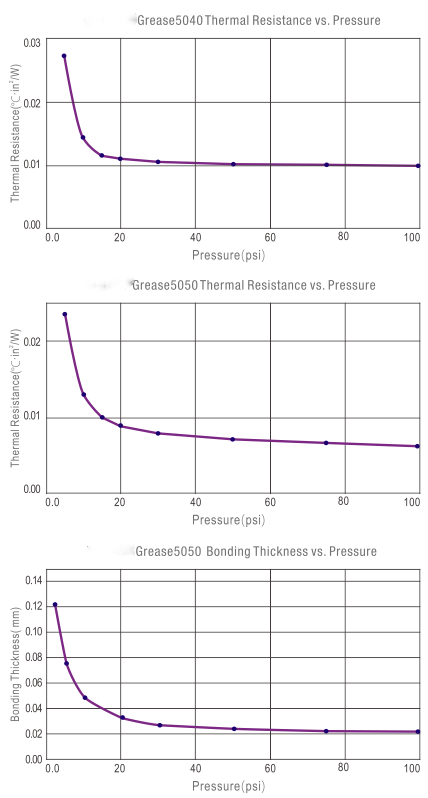

PERFORMCE CURVE




FC@PROPERTIES FC@UNIT FC@TEST METHOD 5015 5020 5030 5040 5050
Appearance - Visual Visual Grey Grey Grey Grey
Thermal Conductivity W/m·K ISO 22007-2:2008 1.50 2.00 3.10 4.00 5.00
Thermal Resistance @50psi °C·in²/W ASTM D5470 0.027 0.023 0.009 0.01 0.007
°C·cm²/W 0.161 0.145 0.058 0.065 0.045
Thermal Resistance @23°C cps BrookField DV-II + Spindle–T-F;
Speed 2 rpm		 1.2X105 8.0X104 1.5X105 1.3X105 2.5X105
Flame Rating - U.L 94V-0 94V-0 94V-0 94V-0 94V-0
Volume Resistivity  Ω·cm ASTM D257 ≥1.0X1012 ≥9.0X1013 ≥1.0X1010 ≥1.0X109 ≥1.0X109
Density g/cm³ ASTM D792 2.55 2.60 2.75 2.82 2.92
Dielectric Constant @1MHz ASTM D150 6.5 6.3 7.5 7.8 8.5
Service Temp. °C Aerobon -50~+150 -50~+150 -50~+150 -50~+150 -50~+150
RoHS Compliant - Aerobon YES YES YES YES YES
