Aeroflex 3000SF is a high-performance, compliant, silicone-free thermal interface material. By coupling extremely high thermal conductivity (3.0W/m·K) with exceptional wetting characteristics, Aeroflex 3000SF provides low thermal resistance between heat source component and heat dissipation part or housing. This makes it well-suited for applications where silicone-based pads are traditionally used as well as those applications which are silicone-sensitive, especially in optical industry. Aeroflex 3000SF is naturally tacky on both sides requiring no additional adhesive coating. The natural tack allows the pad to be held in place during assembly.
FEATURES & BENEFITS
TYPICAL APPLICATIONS
|

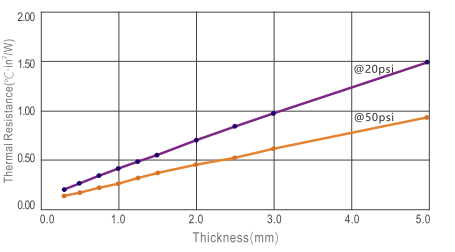

SELECTION GUIDE PERFORMCE CURVE ![]() |
FC@PROPERTIES | FC@UNIT | FC@TEST METHOD | 3000SF |
---|---|---|---|
Appearance | - | Visual | Blue |
Thickness | mm | ASTM D374 | 0.30~10.0 |
Thermal Conductivity | W/m·K | Hot Disk | 3.00 |
ASTM D5470 | 3.00 | ||
Thermal Resistance (@1mm,20psi) | °C·in²/W | ASTM D5470 | 0.40 |
°C·cm²/W | 2.58 | ||
Hardness | Shore OO | ASTM D2240 | 25 |
Flame Rating | - | U.L 94 | V-0 |
Dielectric Strength(@1MM) | kV | ASTM D149 | >9.0 |
Volume Resistivity | Ω·cm | ASTM D257 | ≥4.0X1013 |
Density | g/cm³ | ASTM D792 | 1.60 |
Tensile Strength | psi | ASTM D412 | 30 |
Elongation | % | ASTM D412 | 60 |
Compression Deflection (%) at given pressure | 10psi | ASTM D575 | 23 |
50psi | 58 | ||
100psi | 85 | ||
Dielectric Constant | @1MHz | ASTM D150 | 3.2 |
Service Temp. | °C | Aerobon | -40~110 |
RoHS Compliant | - | Aerobon | YES |
