Characteristic and Strength

High shielding property in a broad band
Suitable for shielding in a vast space, such as dark room, cabinet, chassis etc.
The woven wire mesh can easily pierce into the metal fitting surface, so the electric contact is stable and good.
It can be installed in various ways to meet the structural design requirement; for example, it can be installed into a groove or pasted using adhesive tape.
The mesh grid lining can be used in combination with common rubber lining to play the role of moisture and dust prevention.
It has a high compression amount; for different structure types, the amount of compression is between 15% and 75%.

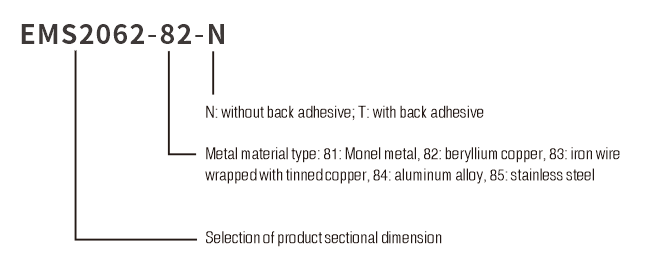

Product Type Selection Instructions

Note:
All the products listed above can be supplied in coil by batch, or supplied by being processed to liners according to user's requirement.
The wire mesh is usually selected by considering the shielding effectiveness, corrosion resistance, electrochemical compatibility and cost.
For the purpose of low compressive strength and low residual compressive deformation, there are different rubber core materials and configurations for the rubber core metal wire mesh lining, such as sponge silicone rubber, solid core silicone rubber, neoprene etc
For the product customized for the customer with a higher requirement, such as special requirement for the back adhesive position, tolerance, rubber core material, and surface treatment, before the production, both the buyer and seller shall make a final confirmation according to the drawing.

Hollow round wire mesh

Hollow double round wire mesh

Hollow P type - fixed wing single round wire mesh

Hollow D-type wire mesh

Solid core double round wire mesh

Solid core round Wire mesh

Solid core P type - fixed wing single round wire mesh

Solid core rectangle wire mesh

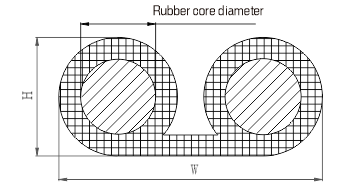

Solid core sponge rubber core double round wire mesh

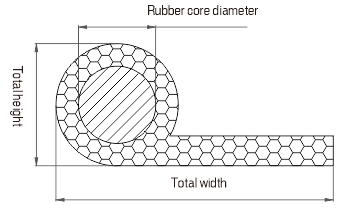

Solid core P type - sponge rubber core -fixed wing single Round wire mesh

Solid core sponge rubber core round wire mesh

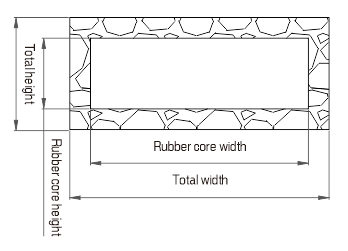

Solid core rectangle sponge rubber core wire mesh

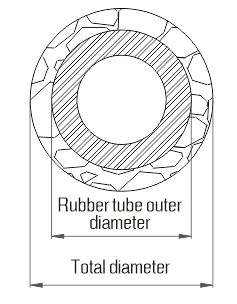

Hollow silicone rubber tubing round wire mesh

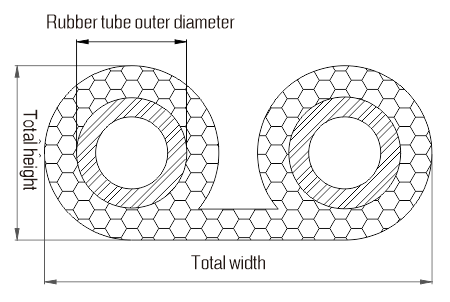

Hollow silicone rubber tubing double round wire mesh

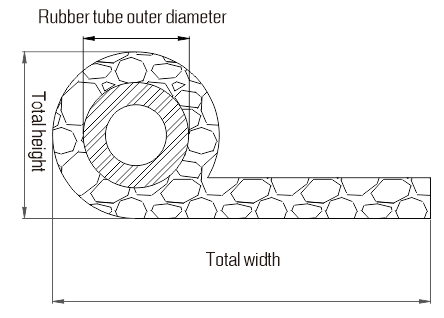

Hollow P type silicone rubber tubing -  fixed wing single Round wire mesh

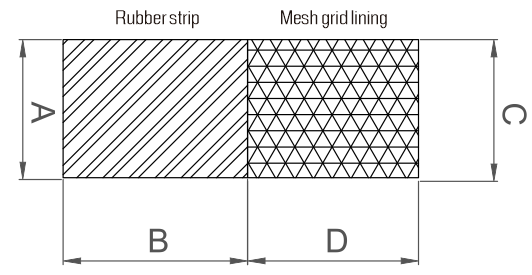

Sealed rubber composite mesh grid EMI lining
