MG - Series Wire Mesh Shielding Glass

The conductive shielding layer of Aerobon's MG series shielding glass is the wire mesh film with high light transmittance. The wire mesh is made with special techniques and materials, and has a large visible area and good transmittance. Its special coating can realize the low reflectivity; with the perfect fitting between the excellent optical cement and glass, it can not only have favorable electromagnetic shielding effectiveness, but also has as high as 86% light transmittance.
Besides the fitting of a double-layer structure, such wire mesh film can also be closely stuck to the single-glass base material to form a special single-layer structure, which can effectively reduce the thickness of the shielding glass to 1.1mm; such product is very suitable for the optical shielding of a light and thin structure. The base material can also be selected flexibly. Both float glass base material and organic glass base material can be used in the single-layer and double-layer structure.

Product Description Performance Curve Earthing diagram of MG wire mesh shielding glass Typical Property Data

Product Characteristic and Strength

Linear diameter of wire mesh: 8um, surface resistivity: ≤0.25Ω / sq, 85OPI (mesh), visible area: 95%
As high as 86% light transmittance, superexcellent visual effect, meeting the customer's special optical requirements: increase in light transmittance, anti-glare, anti-reflection etc.
Favorable shielding effectiveness, preventing electromagnetic radiation contamination
Various glass base materials are available; in order to improve the structural strength, physical toughened glass and chemical toughened glass are provided;
Support the optical matching between the product and customer's display screen to eliminate Moire interference.

Analysis of the Shielding Property of MGWire Mesh Shielding Glass

SE=A+R+B+K1+K2+K3
SE: shielding property, A: absorption loss; R: reflection loss; B: multilateral absorption loss; Kl: correction coefficient of mesh number; K2: correction coefficient of low frequency transmittance; K3: intercoupling correction coefficient of nearby mesh holes
A: The bigger the linear diameter and the more the mesh number is, the better the absorption loss is. R: Relating to the conductivity and permeability of the wire mesh
B: neglectable when A>10dB; K1: the smaller the mesh surface area, the better the effect
K2: when the skin depth is near the mesh spacing, the shielding effectiveness will decline, which is particularly serious at a low frequency.
K3: When the meshes are closer to each other and the hole size is much bigger than the wire mesh diameter, there will be coupling between adjacent meshes to improve the shielding effectiveness.

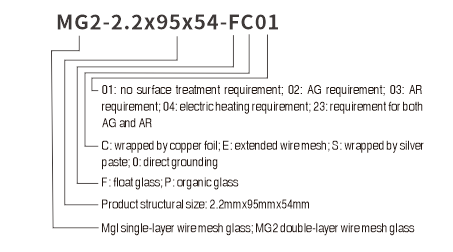

Type Selection Instructions for MG WireMesh Shielding Glass

 Copper foil wrapping treatment (applicable to film coating and wire mesh shielding solution)

No contact point; the installed part contacts with the shielding conducting surface (applicable to film coating and wire mesh shielding solution)

Note: The earthing mode shall be designed and confirmed according to the actual installation requirement.



       Item       MG1 wire mesh glass     MG2 wire mesh glass
Structural situation wire mesh + single layer glass bonding wire mesh + double glass bonding
Glass substrate options Inorganic glass, organic glass Inorganic glass, organic glass
Thickness options:  Between 1.5mm-6.3mm, recommended thickness: 1.5mm,2.4mm,3.3mm,4.3mm Between 1.8-6,4mm, recommended thickness: 2.2mm, 2.6mm,3.3mm, 4mm,5.2mm,6.4mm
Thickness tolerance:    ±0.2mm ±0.4mm
Glass square meter size (diagonal line/inch) 4.3 inch(95mmx54mm)
5 inch(111mmx62mm)
5.5 inch(122mmx68mm)
6.5 inch(144mmx81mm)
7.5 inch(168mmx93mm)
8.4 inch(189mmx142mm)
10.4 inch(230mmx180mm)
15 inch(305mmx229mm)
17 inch(345mmx259mm)
19 inch(386mmx290mm)
temperature range -40℃-70℃ -55℃-85℃
Grounding edging options copper foil edging, silver paste edging, direct grounding
AG (anti-glare) options organic glass, haze: 10-25; inorganic glass: haze: 2-40; anti-glare effect can be customized according to gloss
AR (Anti-Reflectivity):   It can support customers' customized requirements for AR performance.

Remarks:Confirmation of product drawings:Shielded glass optical productsare customized products for customers. There are still many technical details after the basic size and performance are confirmed. For example, size tolerance, chamfer size, edge shape and width, etc. Therefore, it is necessary for both parties to make final confirmation through drawings before the product is put into production.
The default screen mesh is 85 meshes.
The option table shows the conventional and recommen ded sizes of the product, and Nystein is able to make special customizations according to customer drawings.
For the optical and appearance requirements of shielding glass, such as AR, AG and other cus tomized processing. Pls ref the introduction of surface treatment on the next page.
We can also superimpose the heating function on the basis of this screen glass, Pls ref the heating glass page for details.
According to the actual installation method of the customer, we recommend and provide corresponding grounding treatment. Please refer to the introduction of grounding on the following page.
We provide optical bonding services for screen glass and various touch screens and LCD screens, and make corresponding parameter matching according to specific requirements. Pls ref the touch screen and optical bonding introduction on the next page for details.
