CM6-Polyurethane Foam- Poron
Cm6 - polyurethane foam - Poron micropore polyurethane foam provides rich solutions for the application in terms of lining, sealing, vibration, sound, and energy absorption. The low compressive deformation and low degassing feature make these high performance foams the major cushion material in the communication, vehicle, electronic and medical industry.
Product Description

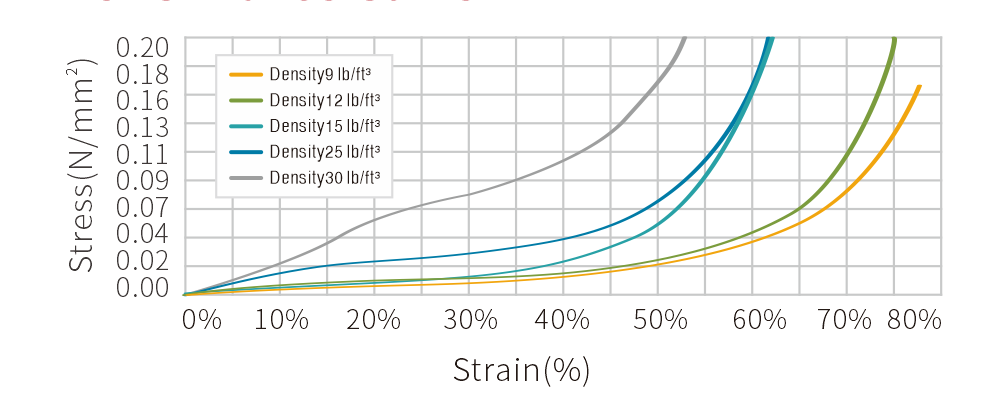

Performance Curve
Typical Property Data
|
Material Characteristic
Dust control, waterproof, sunlight shading and sound proof |
Product Application
Display screen and sound box washer |
| Characteristic | AERO-90 | AERO-92 | Measurement method | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Density,kg/m3 Tolerance% | 145±10 | 200±10 | 240±10 | 320±10 | 400±10 | 480±10 | 12±10 | 15±10 | ASTM D3574 Test A |
| Thicknessmm(in ch)Tolerance% | 0.5~1.0±15 | 0.5~1.0±15 | 0.5~3.05±15 | 2.06±15 | 0.5~1.0±15 | 0.3±20 | 0.155-0.425±10 | 0.125-0.500±10 | - |
| Compression resistance% max,50%,70℃ | 10 | ASTM D3574 Test D | |||||||
| Compression Force Deflection, Range (Kpa), Typical Value (Kpa) |
1.7~9.2 5 |
2~17 9 |
2~22 12 |
6~34 20 |
7~57 32 |
16~92 54 |
0.25-2.5 1.4 |
0.3-3.5 2 |
ASTM D3574 Test C.2.5% deflection |
| Colour | Black | - | |||||||
| Recommended Constant Use, max | 70℃ | 194℉(90℃) | - | ||||||
| Recommended Intermittent Use, max | 120℃ | 250℉(121℃) | - | ||||||
