CM4-EPDM


Cm4 - EPDM is a new type of environmental friendly rubber foam material; it's synthesized with Ethylene-Propylene-Diene Monomer as the main material. It has excellent resistance to weather, ozone, heat, acid and base, and vapour. It has outstanding color stability, electrical property, aging resistance, electrical insulation property, and resistance to ozone, as well as good chemical stability, so it can be used in EPDM hose, tire side, rubber runway, joint strip, tyre tube and automobile parts. Now it's widely used in the field of urban infrastructure construction, automobile industry, high-speed railway, rail transit etc.

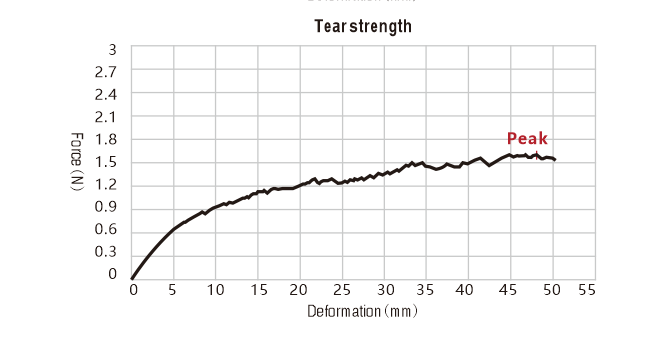

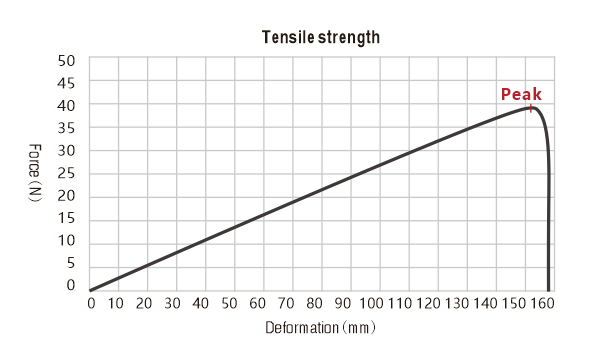

Typical Property Data Performance Curve



     Characteristic        unit          EPDM Measurement  method
specification mm 1mx2m  -
Material - EPDM -
colour - Black -
density kg/m3 130±30 GB/T 6343
hardness HC 13±5 ASTM D2240
25%Compression deformation load Kpa 35±10 ASTM D3574
Tensile Strength Kpa ≥400 ASTM D3574
Tear strength N/mm ≥1.2 ASTM D3574
Elongation at break % ≥150 ASTM D3574
Flame retardant - UL 94 HBF Optional UL94
