Aeroflex G810R

AeroflexGC810R is a synthetic graphite thermal interface material of carbon in-plane single-crystal structure. Aeroflex-GC810R is ultra-thin, light-weight and flexible and offers excellent in-plane thermal conductivity. It is ideal for a variety of heat spreading applications where in-plane thermal conductivity is the most crucial and spaces are limited.

Product Description Typical Property Data

Product Characteristic

Enables compact device designs
Reduces hot spots and protects sensitive areas
Light weight & flexible
Suitable for high volume production
High electric insulation performance
Available in sheet stocks or rolls
For different thicknesses, available in graphite sheet-only version or customized PSA/adhesive version

Product Application

Handheld Devices
Mobile Computing
Flat panel displays
LED Lighting
Telecommunications

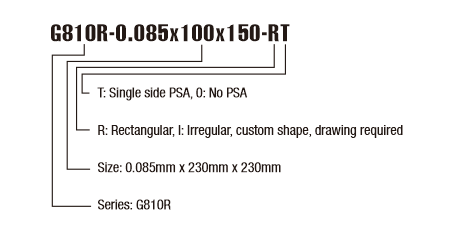

Selection guide



Item Flextein®G810 Measurement methods
Physical properties
colour Gray-black Visual inspection
Composition Synthetic graphite -
Range of working temperature -55℃— 400℃ -
hardness 90 Shore A ASTM D2240
Thickness(mm) 0.085 0.09 0.1 0.11 0.12 ASTM D374
Material width (mm) 100 130 140 140 140 -
Specific gravity (g/cm3) 2.17 2.13 2.1 1.8 1.7 ASTM D792
Tensile strength (PSI) 900 900 900 900 900 ASTM D412
Bending performance (R5/180, times) 2000 2000 2000 2000 2000 -
Electrical properties
Breakdown voltage >4000AC ASTM D257
Thermal performance
X-Y thermal conductivity (W/m-k) 1800 1700 1500 1300 1100 Hot Disk
Z-axis thermal conductivity (W/m-k) 10 ASTM D5470
Specific heat capacity 710 J/(Kg-k) ASTM D2766
