All-sided conductive foam - ECF

Aerobon omni-conductive foam provides conductivity for X, Y and Z axes, and can provide great improvement to the traditional shielding and grounding and enhance the shield effectiveness. This material can handle the constantly increasing computing speed of the micro-processing unit of computer, telecommunication equipment and other electronic devices.With the unique technology, we offers fire retardant omni-conductive foam, and can provide natural color and black for you to choose. Omni-conductive foam is applicable to low-compression reciprocal applications, such as I/O port shielding and other non-shear force standard connectors. Customized parts are available through die cutting, perforating, and punching processes. This material is particularly useful to the shapes where conventional material is hard to make or fit into.

Product Description Typical Property Data Product Structure

Standard Product

ECFP-1000mmx50m roll material, ECFM-lx2m sheet material, ENCF-1OOOm mx50m-coiled material

Optional Dimensions

AEROBON provides the all-sided conductive foams of various thickness for you to choose. The customizable thickness is 0.3mm to 9.0mm (the minimum order amount is 200 m2 or the equivalent specification). The application can be further customized through die cutting, laminating or assembling of other flexible or metallic materials.

Guarantee Period and Storage Conditions

12 months since the date of shipping; it shall be stored in a sealing bag in a temperature of 0-40 ℃. It's suggested to be stored in a low humidity environment (below 50%).

Notice to Selection

1. If there is no flame retardant requirement, ECFP conductive foam is recommended to be the first choice.
2. If there is flame retardant requirement, you are advised to communicate with the sales staff first to help you with type selection.
3. ENCF is applicable to the application of a narrow width.
4. It's better to control the compression ratio of conductive foam to be 20% ~ 50% of the former height. The elastic resilience of ECFM is smaller than that of ECFP.

Operating Temperature

After AEROBON conductive foam is used for years at -40℃~70℃, it can still maintain favorable resilience force and its resistance is slightly changed. It's not recommended to be used for a long time in a hot environment.

Production Area

东莞 and Guizhou

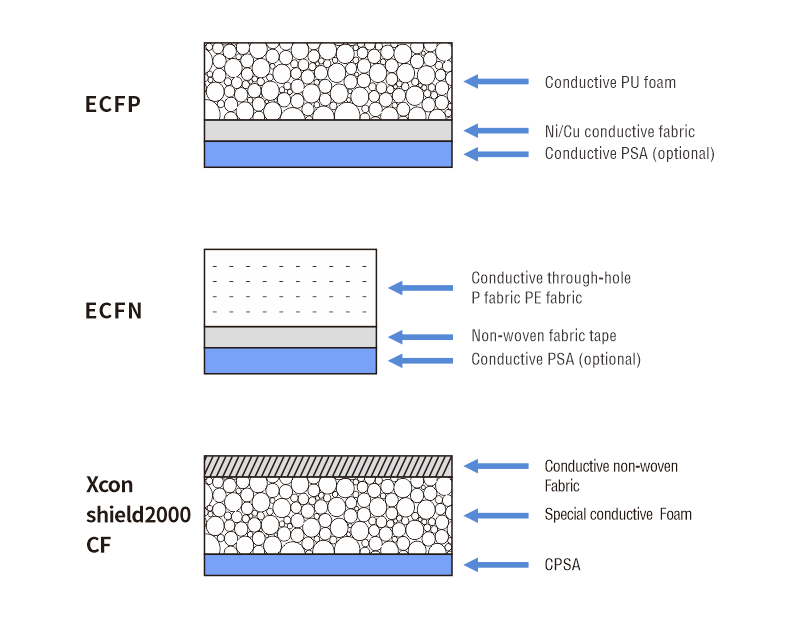

Material category Product number Material structure thickness-mm(Colored products have corresponding thickness) Remarks
(Omni-conductive Foam PSA has optional conductive fabric or non-woven substrate conductive glue.)
0.2 0.3 0.5 0.8 1 1.5 2 2.5 3 3.5 4 5 5.5
Omni-conductive Foam ECFP Conductive PU Foam Black/Grey Thickness 0.3 to 9mm, shape customizable (minimum order of 300 M2 or equivalent size for customized shape)
ECFN Through-Hole Conductive PE Foam - - Black/Grey Black/Grey Black/Grey Black/Grey - - - - - - - Thickness 0.3 to 5.5mm, shape customizable (minimum order of 300 M2 or equivalent size for customized shape)
ECFM Conductive Foam with Mesh Fabric - - - - - Grey - Grey - Grey Grey/composite Grey/composite Grey/composite Thickness 0.2 to 1.5mm, shape customizable (minimum order of 500 M2 or equivalent size for customized shape)
