High Temperature Silicone Based Core - EFOS - SILICONE


Aerobon EFOS - SILICONE conductive FOF product is made by wrapping the high resilience silicon foam with conductive fabric, with conductive adhesive backing. Its products provide an excellent solution for EMI application. Aerobon silicone core FOF is classified into DC15-ST2225, DC15-ST2235, and DC15-STHT80 three product lines. Their core marital are foamed using low-density silicone rubber, which is different from common foam materials. This material is an environmental friendly. It products are resistance to compression and deformation. They also have good electrical insulation and fire retardant properties. Products can endure high temperature, ultraviolet rays, ozone and other extreme weathers. Mechanical shock resistance is another key benefit.Operating temperature at -60~240℃ make the products widely used for cushioning, sealing, and sound absorption in automotive, EV battery pack, aviation, and telecommunication designs.

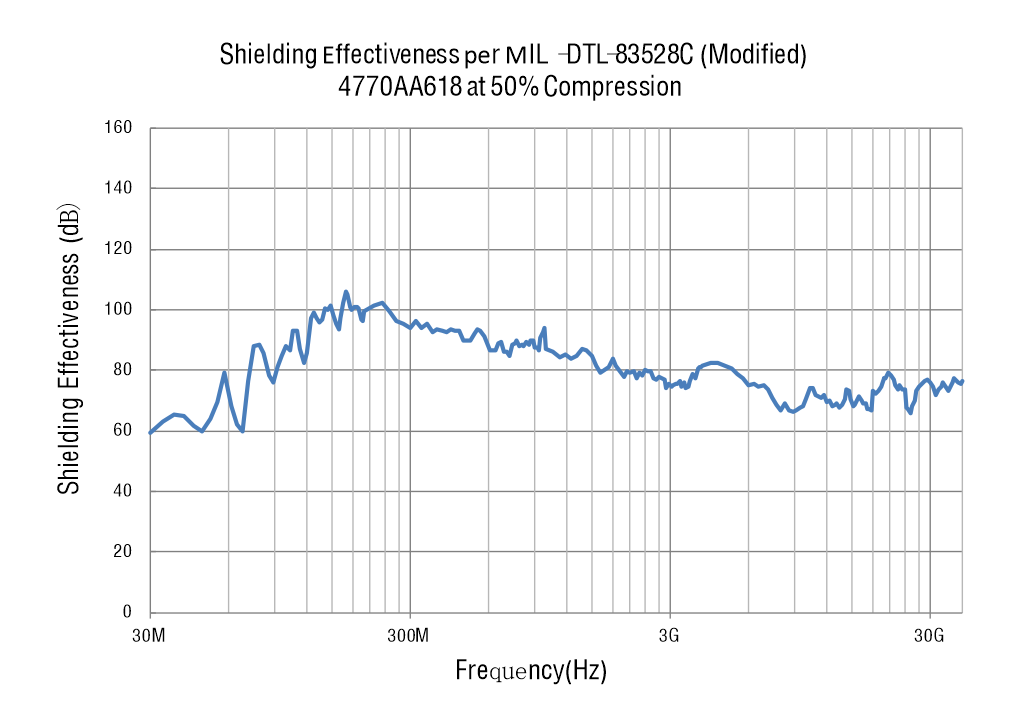

Product Description Typical Property Data Performance Curve

Product Characteristic

Electro-chemically compatible with most installation surfaces, with good conductive and shielding effectiveness
Good elastic resilience, as well as high-wearing feature and high shear resistance
Fire retardant
Various pressure-sensitive adhesive belts to be chosen by the client
Fast bonding

Service Life and Storage Conditions

Optimum life: 24 months
Optimal storage condition: 6 ℃~ 34 ℃, 0 - 65%RH stored in a packing container





PROPERTIES Performance parameter TEST METHOD
product composition180. Silicone Foam,
Acrylic Conductive Adhesive,
Conductive Fabric
-
Peel strength gf/25mm ≥800 ASTM D3330
Contact resistance Ω ≤0.15 MIL-STD-202
Surface resistance Ω/sq ≤0.1 ASTM F390
Shielding effectiveness dB ≥60 MIL-DTL-83528
Recommended compression ratio 30% -
