AERO-Sorber ABS5000

AERO Sorber ABS series microwave absorbers are in thin sheet form loaded with magnetic fillers. Aerobon specially designs this series products for reflection attenuation of high incident angle wave. Products are suitable for 2 to 40GHz frequency wave absorbing. The silicone elastomer substrate stands high temperature, and is oil resistant and fire retardant. The special magnetic particles fillers make the products excellent microwave absorbing capability when the incident angle is over 65 degrees.
AERO-Sorber ABS series is used to reduce microwave resonance inside enclosure and cavity "Q" value. Also, it could effectively isolate bottom plate and antenna. Together with additional EMI materials, it provides perfect solution for EMI shielding in 2 - 40GHz frequency range. Refer to the following corresponding Return Loss Curve for specific product performance.



Products Features

  • Flexible, durable, thin.
  • Electrically insulating material, can and need to be bonded or pressed onto metal structure to achieve best microwave absorbing effectiveness.
  • Optional PSA, and PSA peel force is over 60 Kpa. Products can be die-cut into custom shapes.
  • The lower the frequency range covers, the thicker and heavier the absorber will be.

Ordering Guide

Note:
Custom sizes are available. PSA is optional and its properties are available upon request. Joint usage with metal structure shows the best performance.





Typical Property Data
FC@Part No.

Thickness (mm)

Standard Size (mm)

Temperature Range (℃)

Insulation Resistance (Ω)

Color

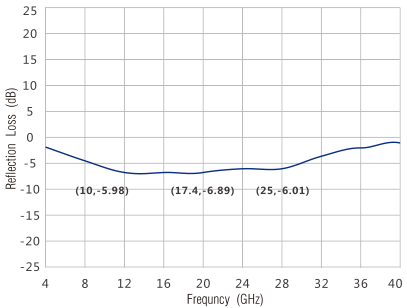

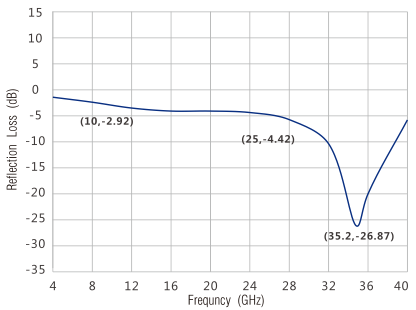

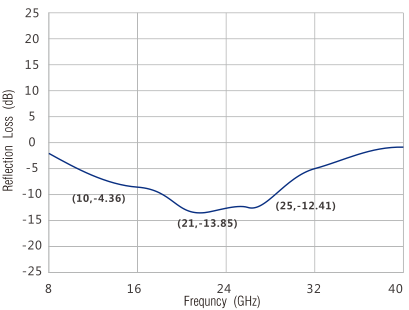

Frequency Range and Attenuation Performance
ABS 5010 0.25 300x300 -55~+155 1X109 Grey
ABS 5020 0.5 300x300 -55~+155 1X109 Grey
ABS 5030 0.75 300x300 -55~+155 1X109 Grey
